Name: RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200C
Availability: InStock

المنزل > المنتجات > آلة حفر الآبار المائية >

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

مكان المنشأ:

الصين

اسم العلامة التجارية:

RanCheng

إصدار الشهادات:

CE,ISO 9001:2000

رقم الموديل:

RCF200C

اتصل بنا

طلب اقتباس

تفاصيل المنتج

نموذج:

RCF200C

طول الأنبوب:

3 م

عمق تتحمل:

200 م

قطر الأنبوب:

76 ملم / 89 ملم

قوة الرفع:

15 طن

محرك الديزل:

58KW يوشاي

إبراز:

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

شروط الدفع والشحن

الحد الأدنى لكمية

الأسعار

قابل للتفاوض

تفاصيل التغليف

يمكن شحنها بواسطة حاوية واحدة مقاس 20 بوصة

وقت التسليم

15 يوم عمل

شروط الدفع

/ تي تي، ويسترن يونيون

القدرة على العرض

100 مجموعات شهريا

منتجات ذات صلة

فيديو

أسطوانة حفر هيدروليكية صغيرة بعمق 160 مترًا، آلة حفر المياه، مثبتة على زاحف، جهاز حفر آبار المياه

احصل على أفضل سعر

فيديو

آلة حفر الآبار المائية بعمق 1000 متر 105mm - 800mm Dia 179KW

احصل على أفضل سعر

فيديو

معدات حفر الآبار المائية الهيدروليكية الهوائية عمق الحفر 500 متر محرك 118 كيلوواط

احصل على أفضل سعر

فيديو

معدات حفر الآبار المائية على عمق 800 متر 153 كيلوواط محرك 140 ملم - 500 ملم قطر

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

The RCF200C deep water well drilling rig is an independently developed product of our company. As a new-generation DTH drilling rig, it is equipped with enhanced air power to deliver a faster drilling speed and higher working efficiency. Adopting advanced hydraulic technology and the latest structural design, this drilling rig features low energy consumption, large rotary torque and flexible hole deflection. It is widely applicable for resource exploration, hydrological wells, civil water supply, agricultural irrigation and other drilling projects.

Manufactured with high-quality raw materials, the machine boasts a compact and exquisite structure. It ensures stable operation, low failure rate, excellent durability and superior cost performance. Verified by the market, our drilling rigs have gained widespread recognition and positive feedback from global customers.

Technical Specifications

Parameter	Specification
Model	RCF200C
Bore diameter (Hammer)	90-350mm
Bore depth	200m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
Feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of the rotary	3500-4800Nm
Rotary speed	45-70r/min
Mud Pump flow	250L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	4000×1800×2300mm
Weight	5000Kg
Diesel engine	58KW Yuchai

Key Advantages

1. Powerful Performance, Exceptional Efficiency
Featuring a newly developed, proprietary down-the-hole (DTH) drilling configuration, this machine combines upgraded pneumatic power with advanced hydraulic technology. It boasts low energy consumption, high rotational torque, flexible hole positioning, and rapid drilling speeds, making it ideally suited for a wide range of engineering applications—including resource exploration, civil water wells, and agricultural irrigation.

2. Precision Engineering, Stable and Durable
Constructed from premium-grade raw materials, the machine features a compact and streamlined structure. It operates smoothly with a low failure rate; its robust chassis ensures exceptional durability, allowing for prolonged, continuous operation without prone to mechanical issues.

3. High Cost-Effectiveness, Excellent Market Reputation
Offering outstanding overall economic value and a superior price-performance ratio, this equipment has been rigorously field-tested across global markets. It has garnered widespread recognition and positive reviews from a vast base of satisfied customers.

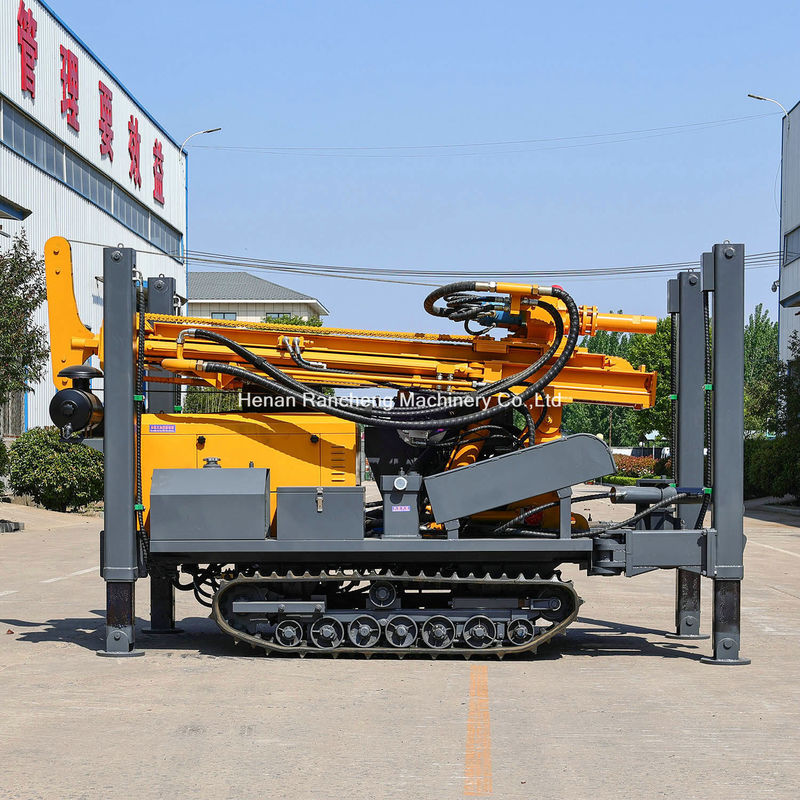

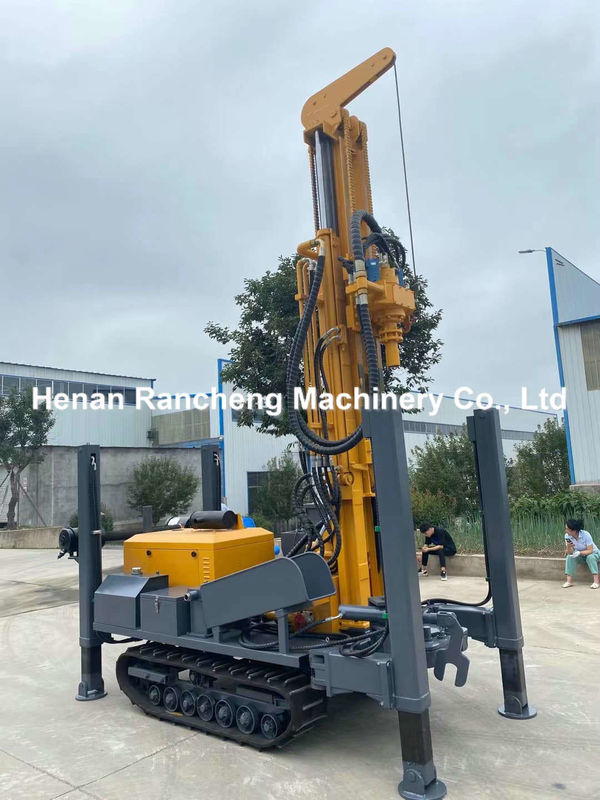

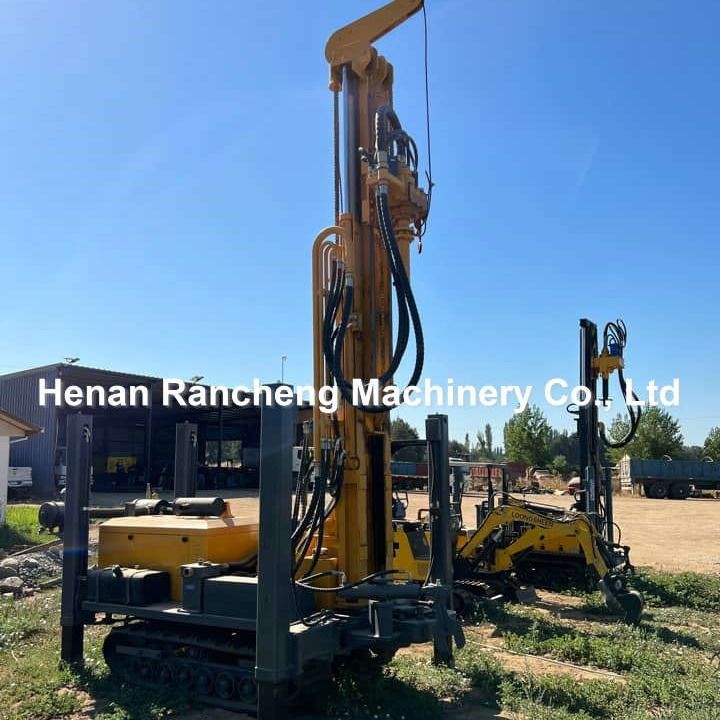

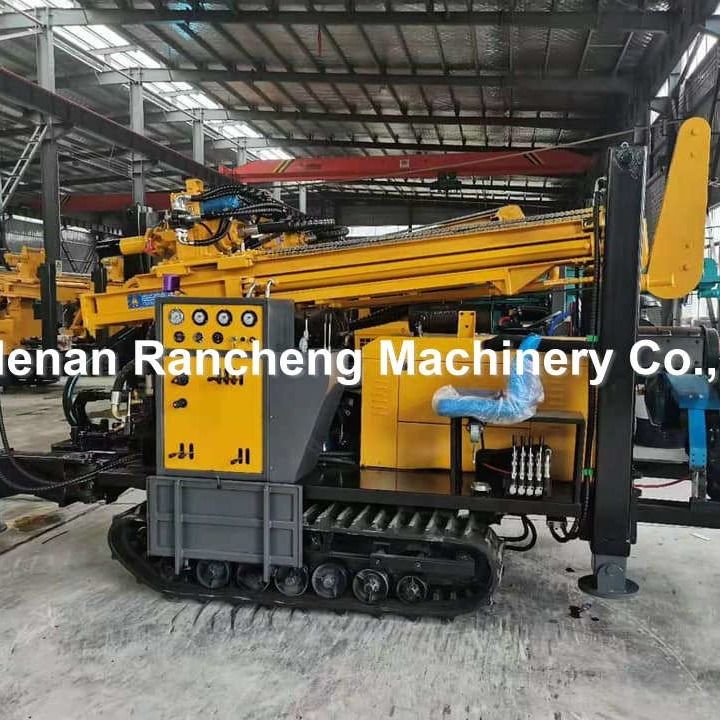

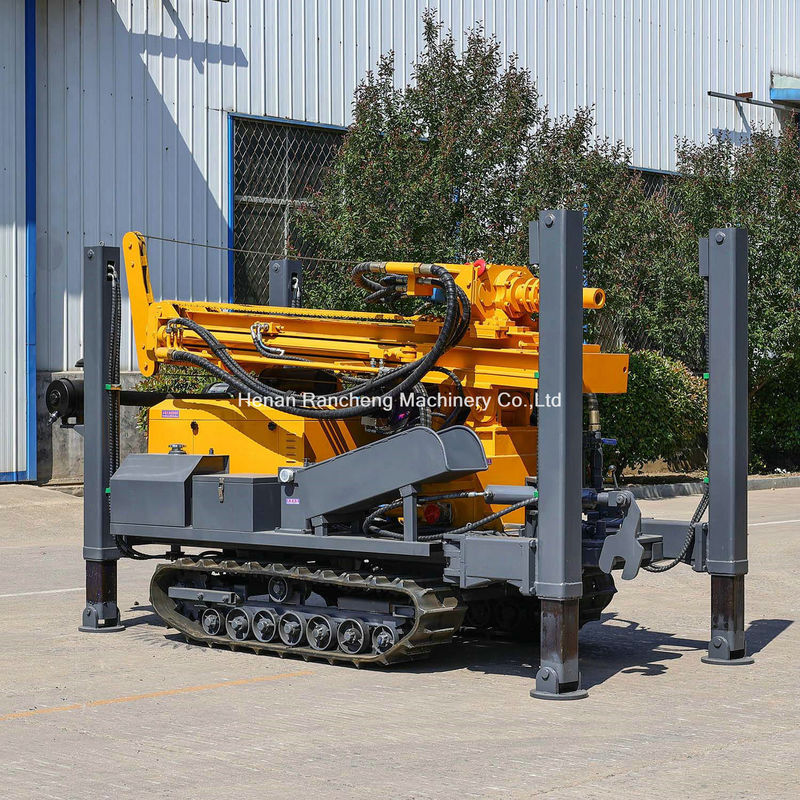

Product Images
