Name: RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

المنزل > المنتجات > آلة حفر الآبار المائية >

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

مكان المنشأ:

الصين

اسم العلامة التجارية:

RanCheng

إصدار الشهادات:

CE, ISO 9001:2000

رقم الموديل:

RCF400C

اتصل بنا

طلب اقتباس

تفاصيل المنتج

قطر الأنبوب:

89 ملم / 102 ملم

قطر التجويف (المطرقة):

140-350ملم

عمق الحفر:

400 م

قدرة رفع الرافعة:

أقصى عزم دوران للدوران:

6200-9000 نيوتن متر

محرك الديزل:

محرك يوشاي 92 كيلو وات

إبراز:

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

شروط الدفع والشحن

الحد الأدنى لكمية

الأسعار

قابل للتفاوض

تفاصيل التغليف

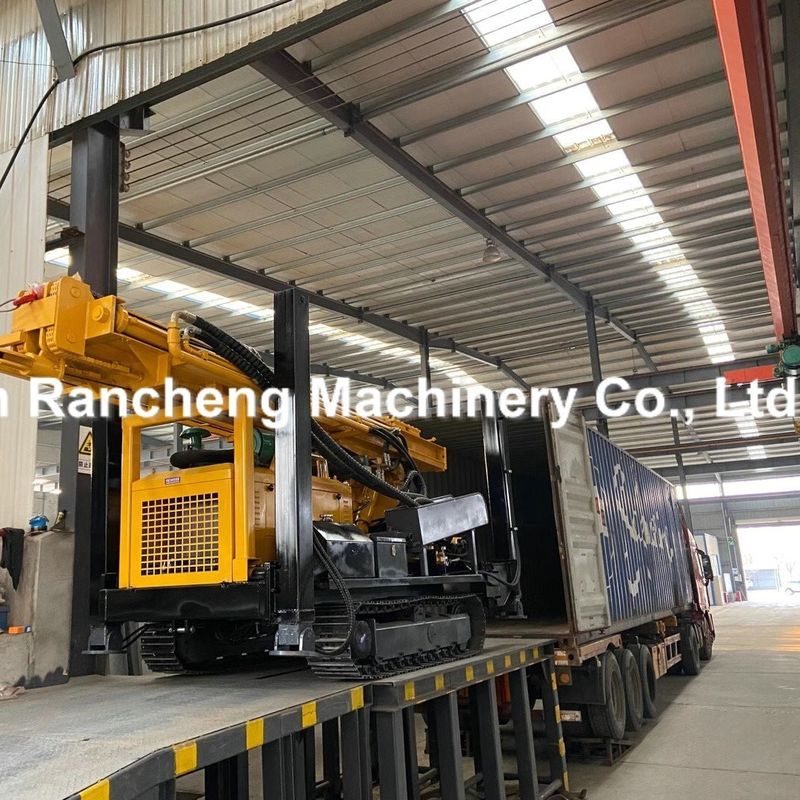

يمكن شحنها بواسطة حاوية واحدة مقاس 20 بوصة

وقت التسليم

10-15 يوم عمل

شروط الدفع

/ تي تي، ويسترن يونيون

القدرة على العرض

100 مجموعات شهريا

منتجات ذات صلة

فيديو

أسطوانة حفر هيدروليكية صغيرة بعمق 160 مترًا، آلة حفر المياه، مثبتة على زاحف، جهاز حفر آبار المياه

احصل على أفضل سعر

فيديو

آلة حفر الآبار المائية بعمق 1000 متر 105mm - 800mm Dia 179KW

احصل على أفضل سعر

فيديو

معدات حفر الآبار المائية الهيدروليكية الهوائية عمق الحفر 500 متر محرك 118 كيلوواط

احصل على أفضل سعر

فيديو

معدات حفر الآبار المائية على عمق 800 متر 153 كيلوواط محرك 140 ملم - 500 ملم قطر

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

The RCF400C deep-water well drilling rig is a new generation of drilling equipment independently developed by our company. The machine is equipped with a high-power down-the-hole (DTH) pneumatic power unit, integrated with an advanced hydraulic system, offering such advantages as rapid drilling speeds, low energy consumption, high rotational torque, and convenient hole deviation correction.

Constructed from high-quality raw materials, the unit features a compact and streamlined body structure; it operates with exceptional stability, exhibits a low failure rate, and offers outstanding durability, cost-effectiveness, and overall value. This model is widely applicable to various drilling projects, including resource exploration, hydrogeological drilling, the construction of civil drinking water wells, and agricultural irrigation systems. Thanks to its superior performance capabilities, the equipment has successfully passed rigorous field testing and has garnered unanimous recognition and acclaim from clients worldwide.

Technical Specifications

Parameter	Specification
Bore Diameter (Hammer)	140-350mm
Bore Depth	400m
Air Consumption	17-36m³/min
Air Pressure	1.7-3.5Mpa
Pipe Diameter	89mm/102mm
Pipe Length	1.5m/2m/3m/6m
Lifting Force	22T
Lifting Speed	3m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	20m/min
Fast Feeding Speed	40m/min
Max Torque of Rotary	6200-9000Nm
Rotary Speed	66-135r/min
Hoist Lifting Capacity	2T
Mud Pump Flow	450L/min (option)
High Hydraulic Leg	1.4m
Feeding Efficiency	15-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	6000×2100×2550mm
Weight	9200Kg
Diesel Engine	92KW Yuchai Engine
Drilling Method	Air Compressor Drilling or Mud Pump Drilling

Key Features & Benefits

1. Fully Hydraulic, Flexible Control: Efficient and Hassle-Free Operation
The machine features a fully hydraulic top-drive design, allowing for independent adjustment of rotation speed, torque, and axial pressure. Drill pipe assembly and disassembly are simple, minimizing auxiliary operation time. Compatible with a wide range of drilling techniques, it delivers rapid drilling speeds and high construction efficiency.
2. High Adaptability, Lower Construction Costs
It supports various drilling methods—including DTH (Down-the-Hole), reverse circulation, and core drilling—and is compatible with a wide array of accessories. Equipped with crawler tracks and extended outriggers, it navigates muddy terrain smoothly and can self-load and unload without the need for a crane. The DTH drilling process lowers the cost per meter of drilling, offering exceptional value for money.
3. Premium Configuration: Stable and Durable Performance
Core hydraulic components are sourced from renowned brands, while the machine body is constructed from high-strength steel. It supports both positive and negative axial pressure adjustment, ensuring optimal impact efficiency at all times. Furthermore, it offers a choice between crawler-mounted and truck-mounted chassis options to suit diverse construction environments.

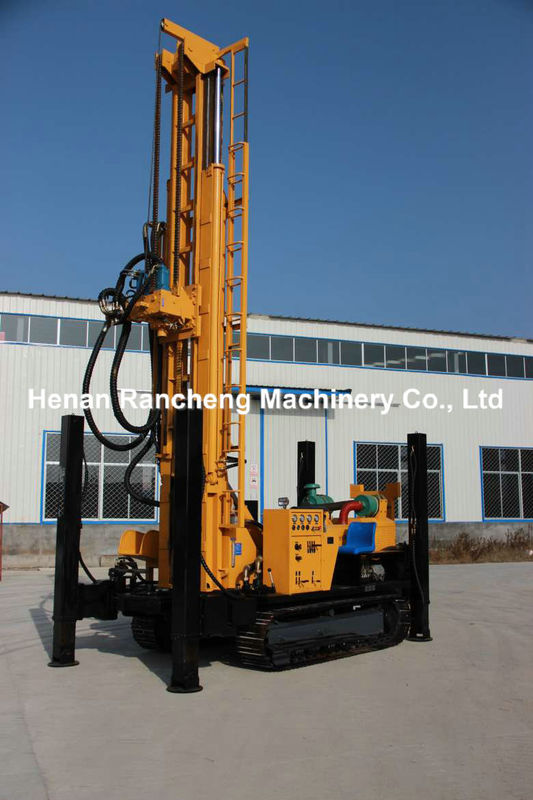

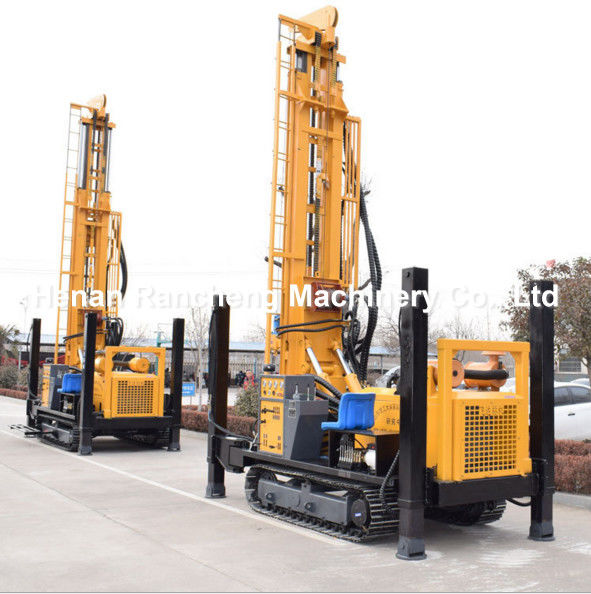

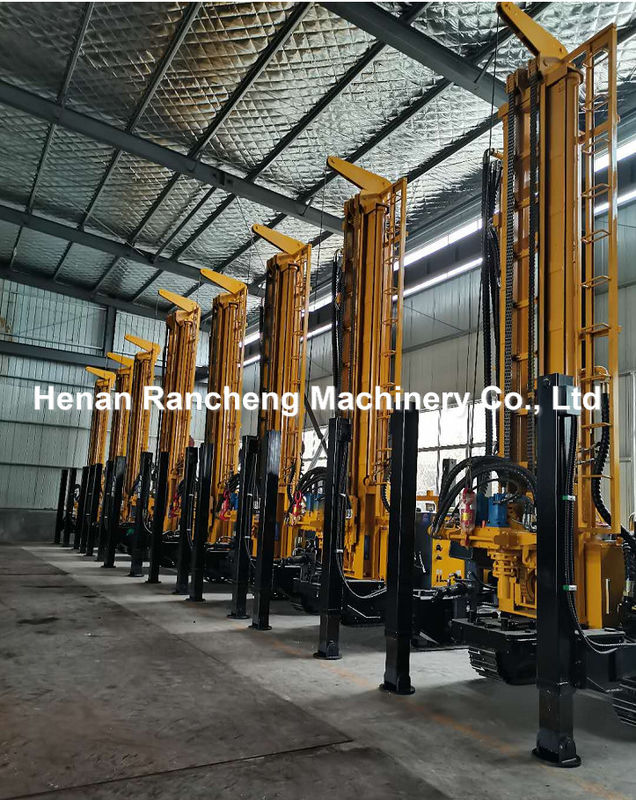

Product Images
