Name: The RCF350T Truck-Mounted Water Well Drilling Rig Has A Drilling Depth Of 350 Meters
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350T
Availability: InStock

المنزل > المنتجات > جهاز حفر الآبار المائية >

The RCF350T Truck-Mounted Water Well Drilling Rig Has A Drilling Depth Of 350 Meters

truck-mounted water well drilling rig,350-meter drilling depth rig,water well drilling rig with warranty

350-meter drilling depth rig

water well drilling rig with warranty

مكان المنشأ:

الصين

اسم العلامة التجارية:

RanCheng

إصدار الشهادات:

CE, ISO 9001:2000

رقم الموديل:

RCF350T

اتصل بنا

طلب اقتباس

تفاصيل المنتج

نموذج:

RCF350T

عمق الحفر:

350 م

تحميل محرك السيارة:

266 حصان

قطر الحفر:

140-350ملم

تغذية السكتة الدماغية:

6600 مم

شكل القيادة:

6 × 4

إبراز:

truck-mounted water well drilling rig,350-meter drilling depth rig,water well drilling rig with warranty

350-meter drilling depth rig

water well drilling rig with warranty

شروط الدفع والشحن

الحد الأدنى لكمية

الأسعار

قابل للتفاوض

تفاصيل التغليف

ويمكن شحنها عن طريق سفينة الدحرجة

وقت التسليم

10-15 يوم عمل

شروط الدفع

/ تي تي، ويسترن يونيون

القدرة على العرض

100 مجموعات شهريا

منتجات ذات صلة

فيديو

RCF200T Truck-Mounted Water Well Drilling Rig With A Drilling Depth Of 200 Meters

احصل على أفضل سعر

فيديو

The RCF350T Truck-Mounted Water Well Drilling Rig Has A Drilling Depth Of 350 Meters

احصل على أفضل سعر

فيديو

حفارة آبار المياه المثبتة على مركبة RCF300T - نموذج شائع متاح للبيع المباشر

احصل على أفضل سعر

فيديو

1000 متر شاحنة عمق محمولة على شاحنة آلة حفر آبار المياه للبيع

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

RCF350T Truck-Mounted Water Well Drilling Rig - 350 Meter Depth Capacity

The RCF350T deep water well drilling rig represents our latest generation of down-the-hole drilling equipment. Engineered with a high-power air compressor for enhanced drilling speed, this model incorporates advanced hydraulic technology to deliver low energy consumption, high torque output, and simplified hole position adjustment. Ideal for resource exploration, hydrological wells, domestic water supplies, and agricultural irrigation applications.

Constructed with premium materials and featuring an efficient, compact design, the RCF350T ensures stable operation with minimal downtime. Its proven reliability and exceptional user experience have earned widespread market acceptance and positive customer feedback.

Technical Specifications

Parameter	Specification
Drilling Type	Mud pump drilling and air DTH drilling
Geology Compatibility	All types
Drill System & Operation	Hydraulic
Drilling Diameter (mm)	115-350
Drilling Depth (m)	350
Work Pressure (Mpa)	1.05-3.5
Consumption (m³/min)	16-40
Drill Pipe Length (m)	3
Drill Pipe Diameter (mm)	89
Axle Pressure (N)	57,000
Lifting Power (T)	24T
Rotary Torque (Nm)	6,200
Rotary Speed	0-100
Truck Chassis	HOWO
Diesel Engine Model	Cu-mmins
Discharge Standard	Euro III
Horsepower	180HP
Rated Speed	2,500r/min
Fuel Type	Diesel
Tire Size	90.00-20R
Drive Form	6×4
Dimension (mm)	10,600×2,500×3,550
Total Weight (T)	23

Key Advantages

Convenient Operation & Strong Adaptability: Full hydraulic control enables flexible parameter adjustment. Top-drive rotary propulsion simplifies drill pipe handling, reducing auxiliary time. Supports multiple drilling processes including air DTH and mud circulation with optional equipment for diverse construction conditions.
High Efficiency & Low Consumption: Advanced hydraulic system with premium core components delivers fast drilling speeds and high operational efficiency. DTH technology reduces per-meter construction costs while maintaining low failure rates and easy maintenance for exceptional cost-effectiveness.
Stable, Durable & Reliable: HOWO truck chassis with high-power engine, combined with patented composite boom and tower design, provides superior lifting capacity and operational stability. Integrated safety features including boom limiters and oil pipe protection ensure both operational safety and extended equipment lifespan for demanding construction environments.

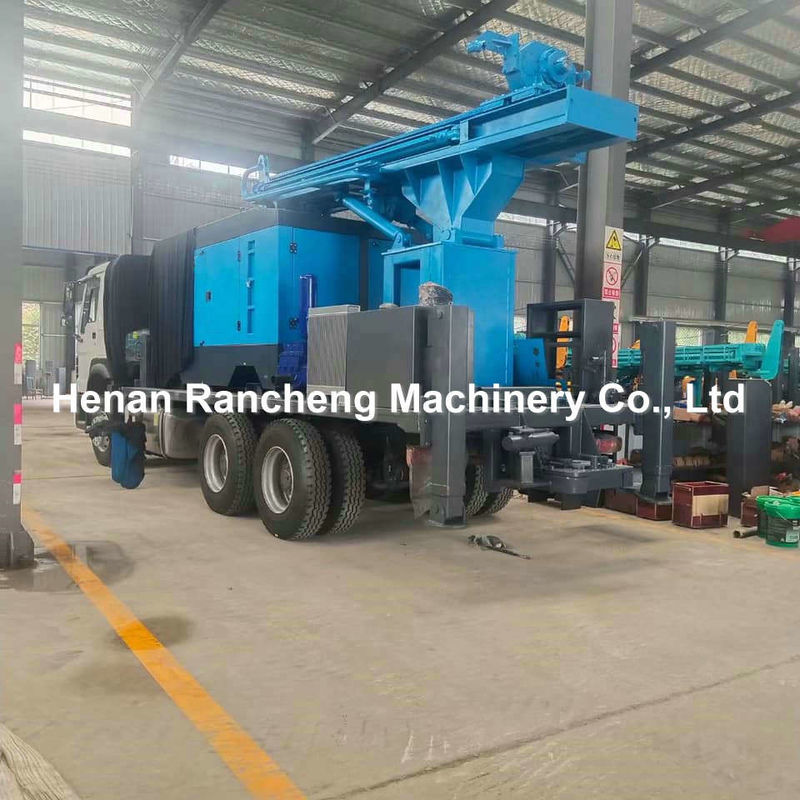

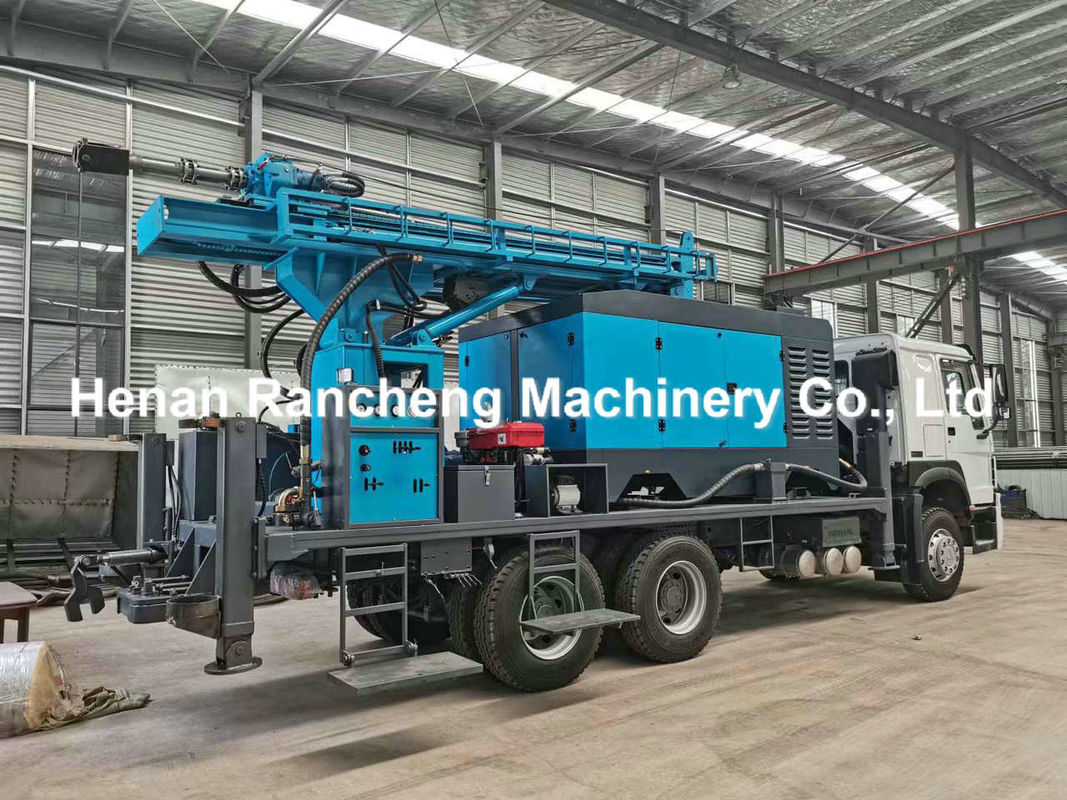

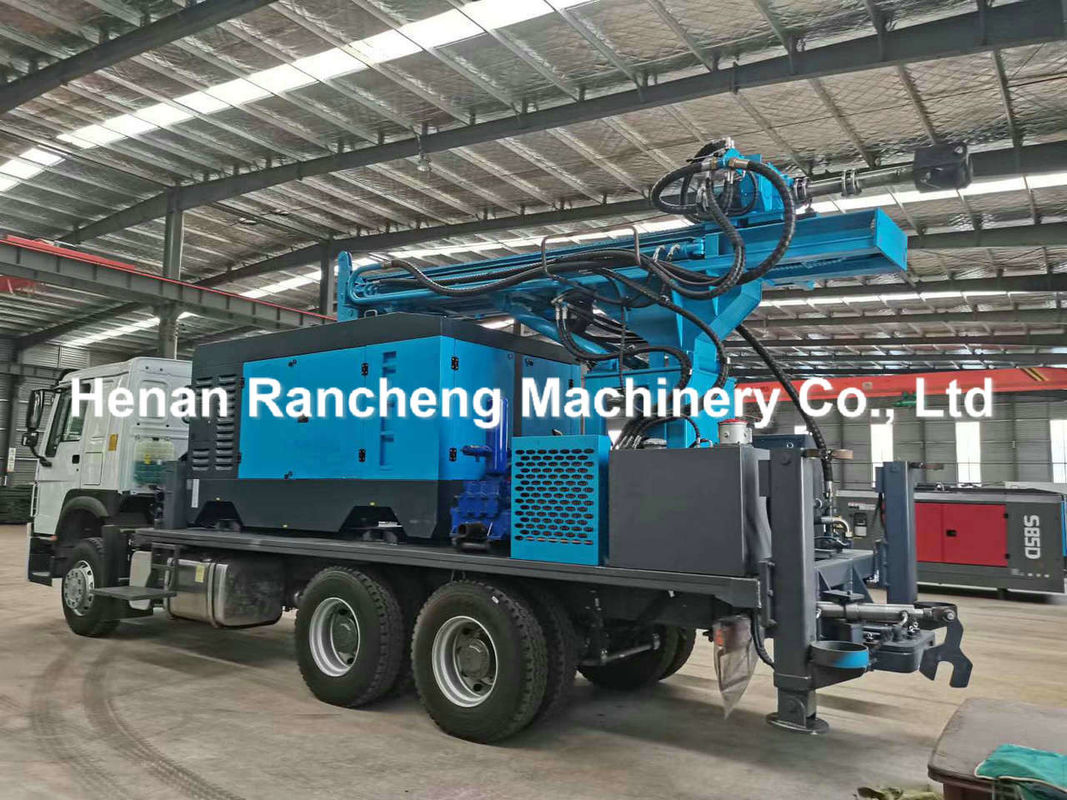

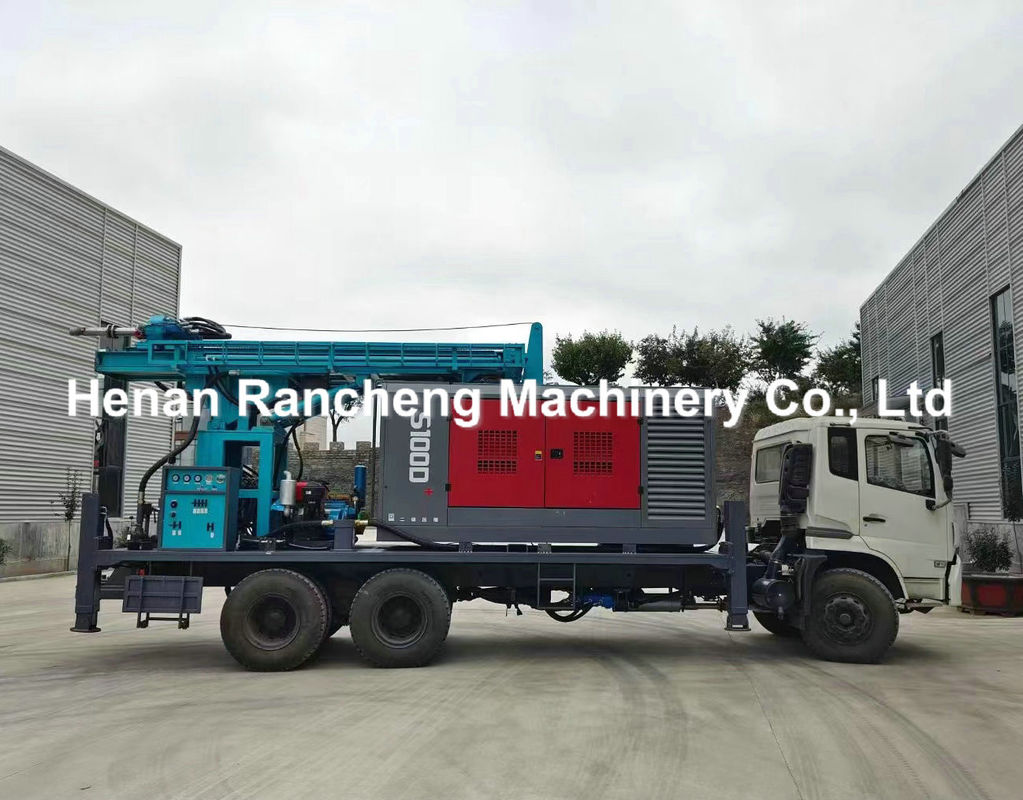

Product Gallery

Manufacturer Profile

Henan Rancheng Machinery Co., LTD is a professional drilling rig supplier in China, specializing in the design and manufacture of water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools. With advanced technology, modern equipment, experienced teams, and ISO9001 and CE certifications, our products are exported to approximately 200 countries worldwide, receiving excellent customer feedback. We adhere to the principle of "Customer First, Integrity First" and look forward to cooperating with you.
