Name: Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180S
Price: 13.00 USD
Availability: InStock

المنزل > المنتجات > آلة حفر الآبار المائية >

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

compact crawler water well drilling rig,180m depth water well drilling machine,crawler type deep well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

مكان المنشأ:

الصين

اسم العلامة التجارية:

RanCheng

إصدار الشهادات:

CE, ISO 9001:2000

رقم الموديل:

RCF180S

اتصل بنا

طلب اقتباس

تفاصيل المنتج

اسم المنتج:

جهاز الحفر المثبت على الجنزير الصغير

نموذج المنتج:

RCF180S

عمق الحفر:

180 م

قوة المحرك:

77.3 كيلو واط

سرعة السير:

2.5 كم/ساعة

قطر أنبوب الحفر:

76 ملم / 89 ملم

إبراز:

compact crawler water well drilling rig,180m depth water well drilling machine,crawler type deep well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

شروط الدفع والشحن

الحد الأدنى لكمية

الأسعار

US$13,000-13,900

تفاصيل التغليف

يمكن شحنها بحاوية 20 بوصة

وقت التسليم

10-15 يوم عمل

شروط الدفع

/ تي تي، ويسترن يونيون

القدرة على العرض

100 مجموعات شهريا

منتجات ذات صلة

فيديو

RCF180C Hydraulic Crawler-Mounted Multifunctional Mobile Water Well Drilling Rig

احصل على أفضل سعر

فيديو

RCF180S Tracked Hydraulic Small Water Well Drilling Rig Is Selling Well

احصل على أفضل سعر

فيديو

RCF1000C Multi Functional Hydraulic Water Well Drilling Rig With A Drilling Depth Of 1000 Meters

احصل على أفضل سعر

فيديو

RCF180S Crawler Mounted Water Well Drilling Rig A Best Selling Model

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

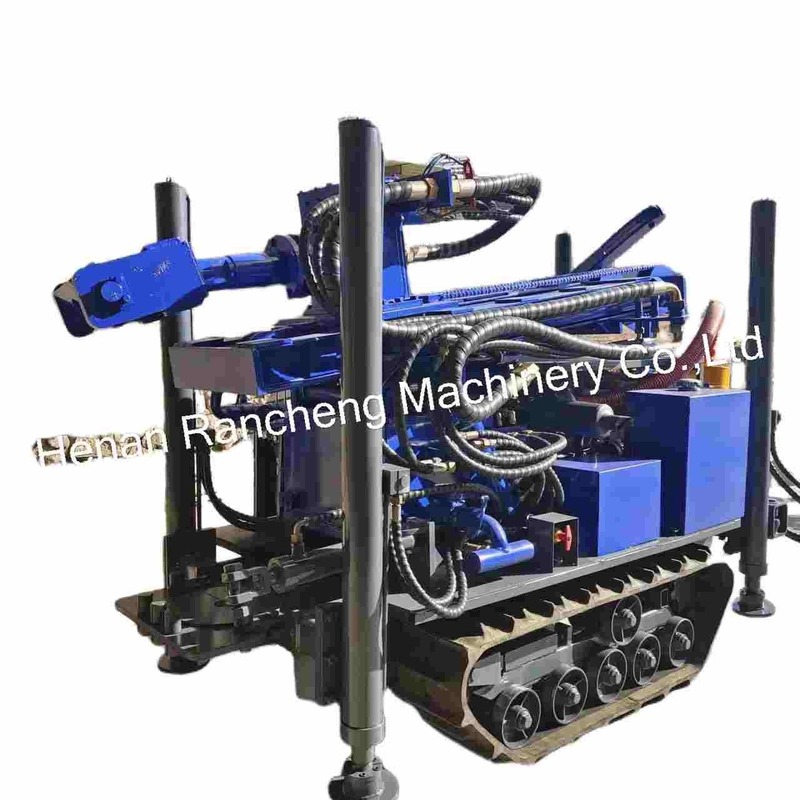

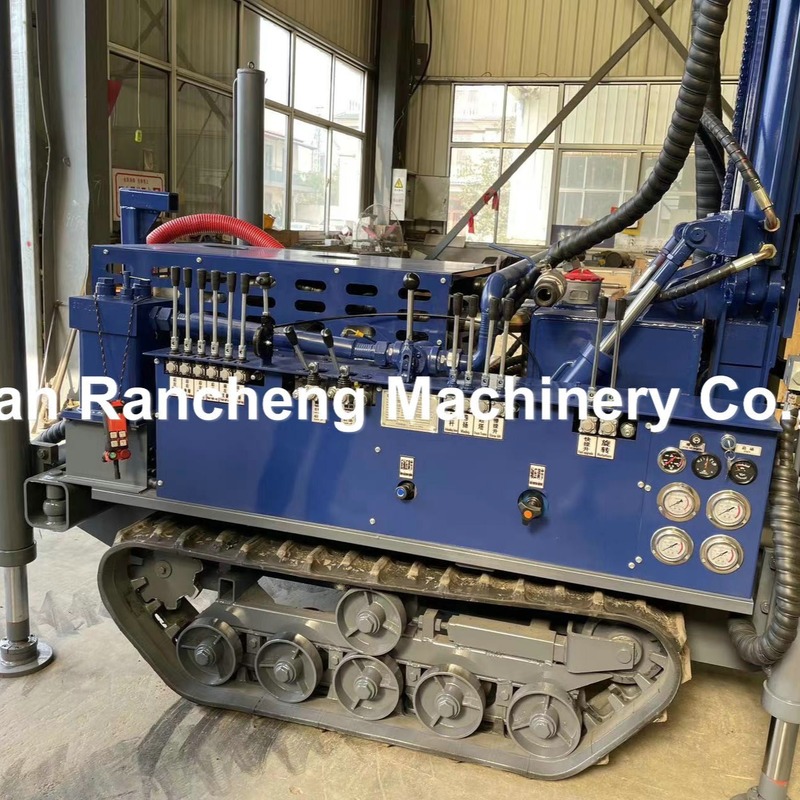

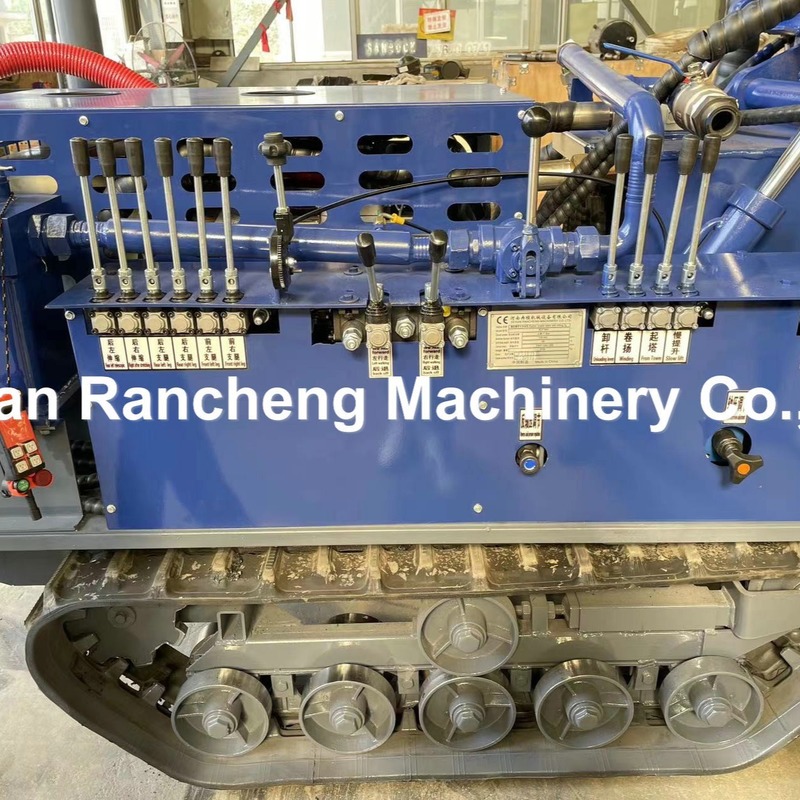

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

The RCF180S is a versatile and efficient small crawler drilling rig that supports both mud pump and air compressor drilling methods. It can drill to a maximum depth of 180 meters, with a drilling diameter of 90-300 millimeters. Powered by a 77.3KW Yuchai engine, it ensures stable and continuous power output while also offering excellent energy efficiency, making it suitable for various geological conditions.

This drilling rig is very easy to operate, energy-efficient, and durable, making it ideal for field operations such as water well drilling, boreholes, and agricultural irrigation wells.

Technical Specifications

Bore diameter (hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	15T
Max torque of rotary	4000-4600Nm
Rotary speed	45-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	2300×1200×1900mm
Weight	2700kg
Diesel engine	77.3KW Yuchai engine

Key Advantages

The RCF180S drilling rig has a maximum drilling depth of 180 meters and a bore diameter of 90-300 mm, precisely matching diverse needs such as domestic water wells, geological exploration, and agricultural irrigation wells, with strong adaptability in drilling depth and diameter.
Equipped with a 77.3KW Yuchai engine, it provides stable power and excellent energy efficiency; it is compatible with both mud pump and air compressor drilling methods, easily handling various geological conditions such as clay, sand, and weathered rock.
The machine is simple and easy to operate, requiring no high-level skills, and can perform conveniently and efficiently even in complex outdoor environments, reducing labor and training costs.
Strictly adhering to industrial-grade materials and processes, it combines energy efficiency and wear resistance, ensuring long-term stable operation in harsh outdoor conditions, offering both durability and cost-effectiveness.

Product Images
