مكان المنشأ:
الصين
اسم العلامة التجارية:
RanCheng
إصدار الشهادات:
CE, ISO 9001:2000
رقم الموديل:
RCF800C
فيديو
فيديو
فيديو
| Attribute | Value |
|---|---|
| Name | Water Well Drilling Machine |
| Model | RCF800C |
| Geology Drilled | All kind |
| Drill System and Operation | Hydraulic |
| Max Hole Depth | 800m |
| Hole Diameter | 140-500m |
| Diesel Engine | 154KW Cummins |
| Dimension | 6300×2300×2650mm |

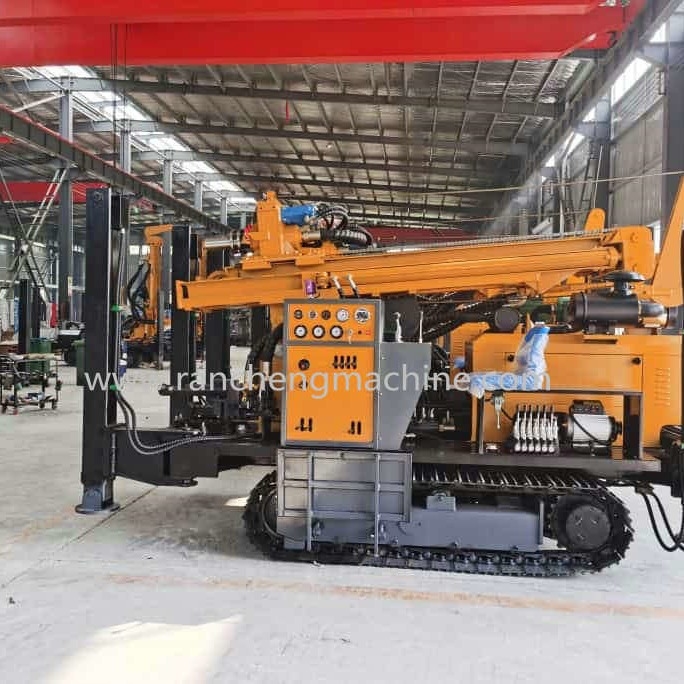

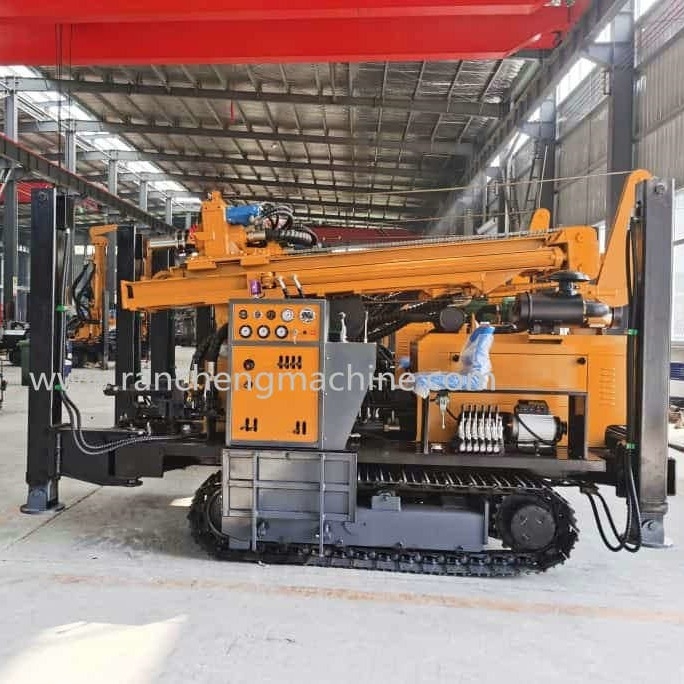

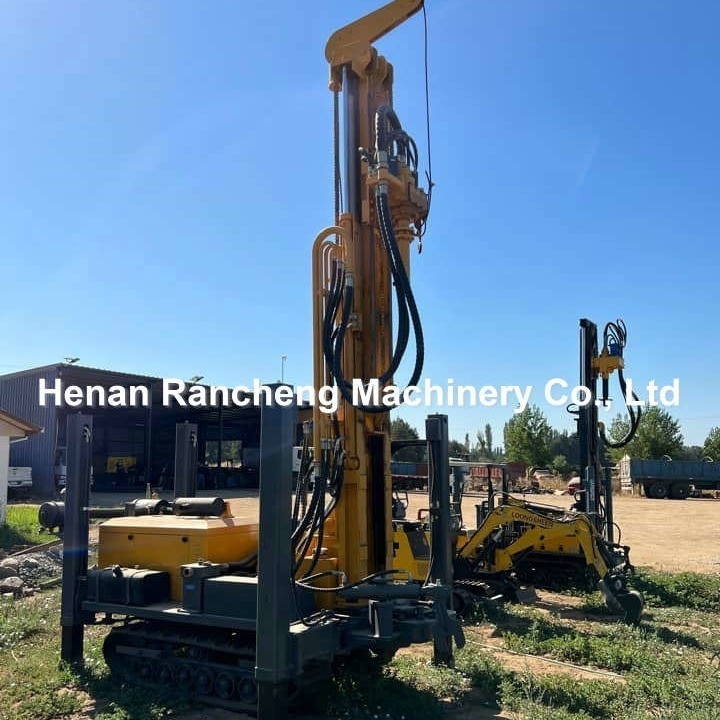

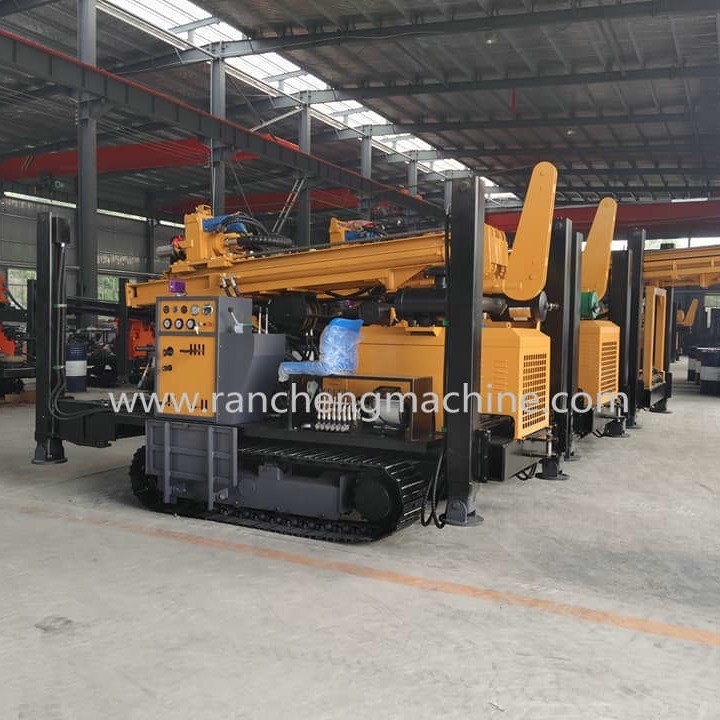

800-meter Water Well Drilling Rig - An Efficient and Reliable Tool for Groundwater Resource Development
Constructed from high-strength steel and equipped with an advanced hydraulic system, this 800-meter water well drilling rig is suitable for deep well drilling and can easily handle a variety of geological conditions, including hard rock and sand formations. Driven by a powerful diesel or electric motor, the rig provides strong drilling power and efficiency, with a maximum daily drilling depth of 80-120 meters. Its modular design allows for easy transportation and on-site assembly, and its user-friendly automatic control system reduces labor costs.
This rig is widely used in agricultural irrigation, mine dewatering, and drinking water supply projects in remote areas, helping to address water shortages. Its robust construction and low failure rate ensure long-term, stable operation, making it an ideal choice for deep well drilling.
Key Advantages: High drilling depth, high efficiency, high reliability, and easy maintenance
| Model | RC800C |
|---|---|
| Drilling way | Both mud pump drilling and air DTH drilling |
| Geology drilled | All kind |
| Drill system and operation | Hydraulic |
| Diesel engine | 154KW Cummins |
| Max hole depth | 800m |
| Hole diameter | 140-500mm |
| Air consumption | 17-42m³/min |
| Length of drilling pipe | 1m/2m/3m/6m |
| Diameter of drilling pipe | 102/108/114mm |
| Total Weight | 13ton |
| Dimension (L * W * H) | 6300×2300×2650mm |
