29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine
Product Description
Air Filtration System: A high-efficiency air intake filter prevents dust particles from damaging the motor and main engine rotor.
High-Efficiency Main Engine: A large rotor design and large bearings ensure low speed. This ensures low operating noise, minimal vibration, and extended service life.
Modulation Control: A regulating valve controls the intake air volume and diesel engine speed based on air demand to minimize fuel consumption, contributing to energy savings and emissions reductions.
Control Panel: Easy to use; features include alarms for high water temperature, high pressure, high exhaust temperature, and high speed.
Diesel Engine: Utilizes renowned diesel engines from Cummins, Steyr, Caterpillar, and Yuchai. This ensures superior compressor performance and reliability.
Cooler: A larger cooler and fan design ensures maximum cooling, especially in extreme operating environments.
Product Specifications
| Model No. | KSZJ-29/23 |
| Capacity | 29 m³/min (1036cfm) |
| Working pressure | 23bar (334psi) |
| The head model no. | SKY11G194 |
| Air compressor oil capacity | 65L |
| Compression Stage: | 2 |
| Outlet connection size*Qty |
G2×1, |
| Engine | |
| Engine Model No: | Yuchai YC6MK400L-K30 |
|
Cylinder bore stroke number |
120×145×6 |
| Displacement | 9.839L |
| Rated RPM | 1800r/min |
| Unload RPM | 1400r/min |
| Rated Power | 288KW(400HP) |
| Diesel engine oil Capacity | 28L |
| Fuel Tank Capacity | 350 L |
| Electrical System Voltage | 24V |
| Package | |
| Wheel size * Qtys | 7.5-16*4 |
| Weight | 4850KGS |
| Dimension (mm) | 3500×1950×2030 |
Application area
Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.

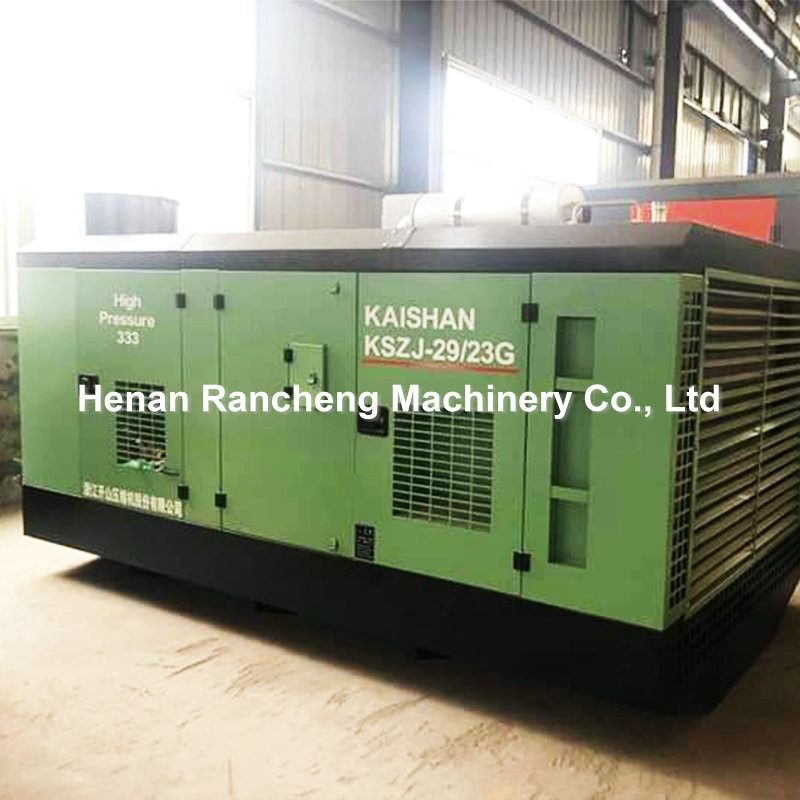

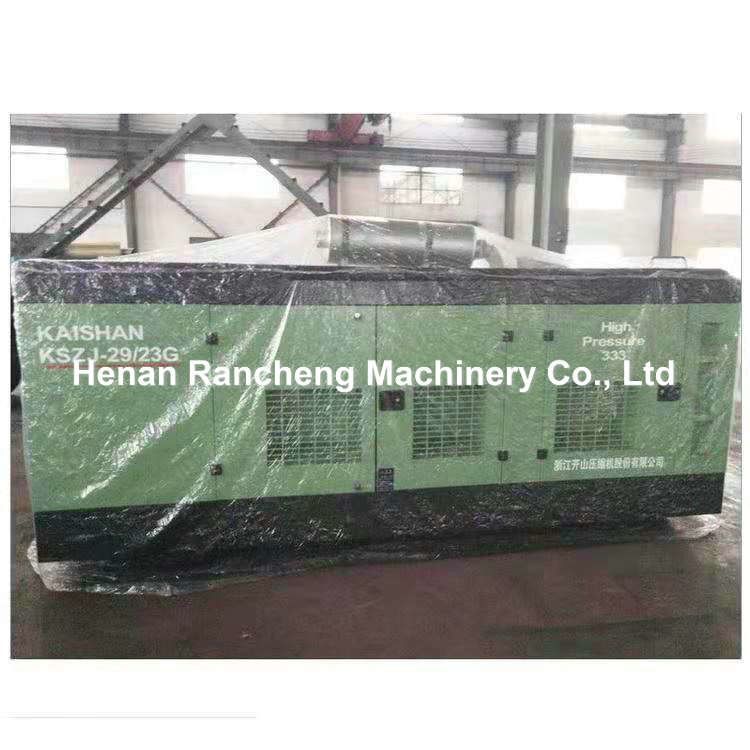

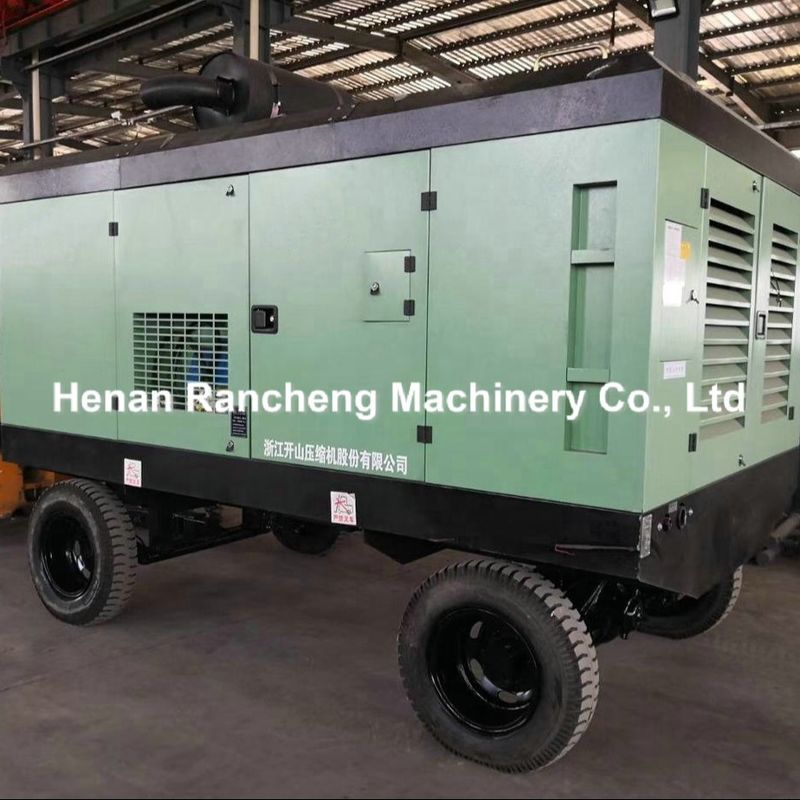

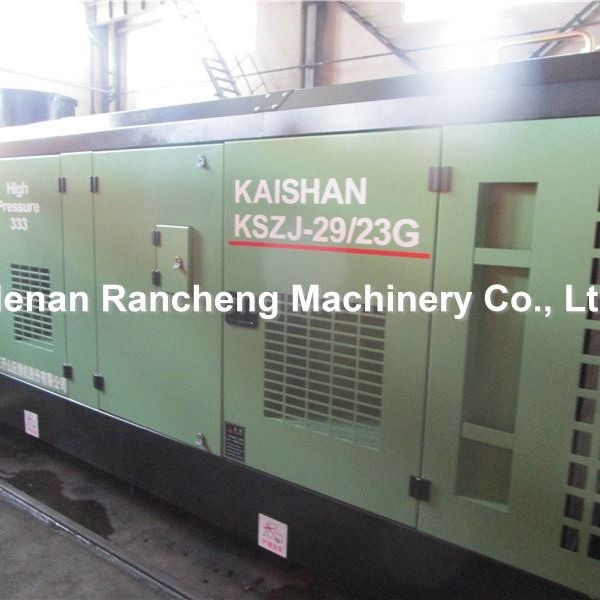

Product Image
